Note: This guide covers most products, but some may have different wiring or apps. For those, refer to the specific guide or the one included with your order.

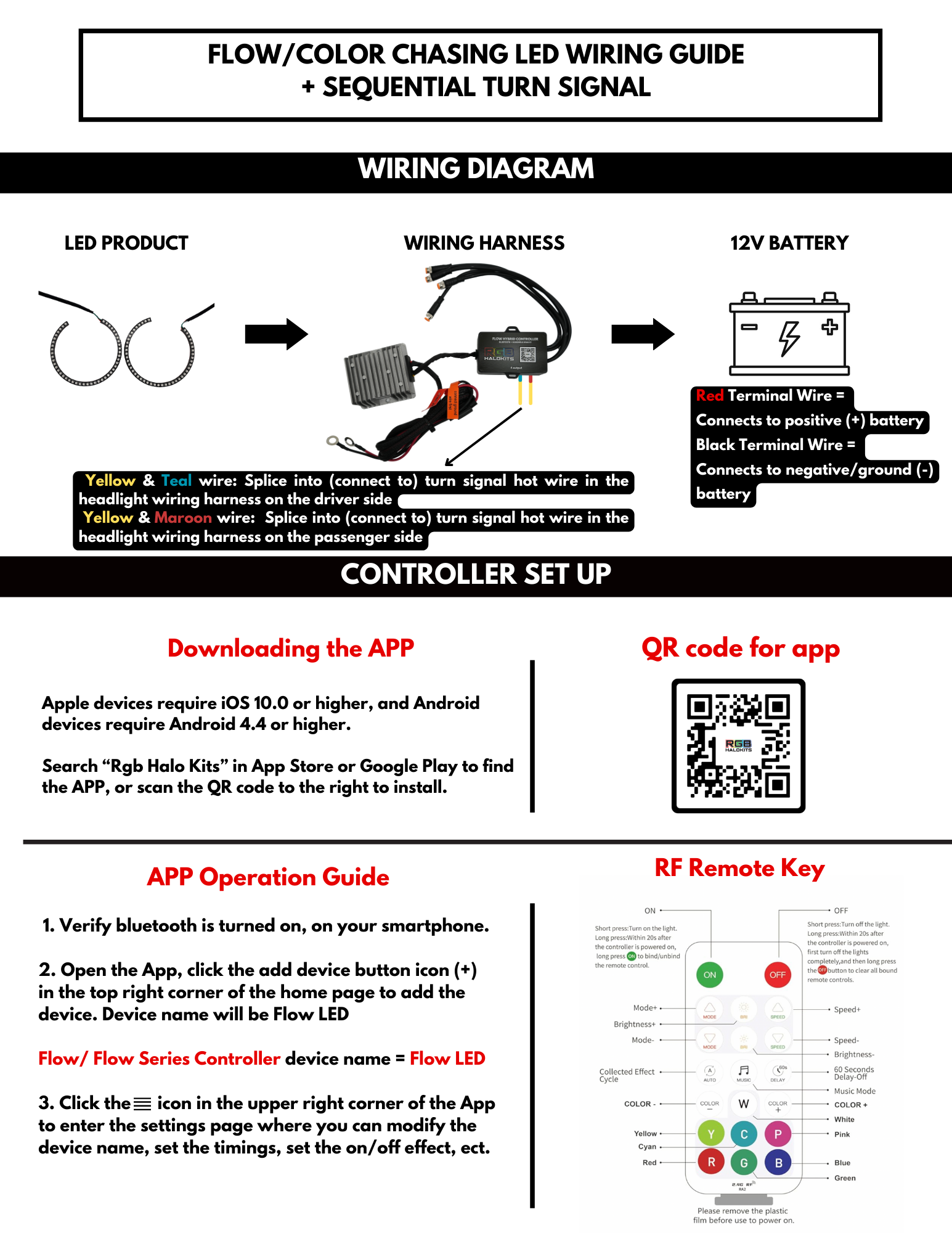

Flow Hybrid Controller Wiring Guide
______________________________________________________________________
ARCHIVES (OLDER VERSION APPS)
Note: Between of dates of 11/01/2023-05/01/2024 Controller / app Banlanx was used on most orders. If your order is before that date, please contact us for more info.
App: Banlanx
FAQ
- Can I wire my lights to turn on/off automatically with a vehicle parking light or DRL?
Yes, you can wire the controller two ways:
1. (recommended) you can wire the controller straight to the battery or constant power source: this will allow you to control the lights at all times even if the car is off. Lights will have to be cut on/off manually via the app.
2. You can wire the controller to a DRL fuse or parking light. The wiring will allow the lights to cut on/off automatically with the DRL or parking lights on your vehicle; however, you will not be able to control the lights while the vehicle or DRL/parking light is off.
