Wiring Guide for LED Types: (RGBW) and (RGBWA)

🔌 LED Wiring Guide Overview

Note: This guide covers most RGBW, RGBWA, and Flow Series products.
Some kits may have slightly different wiring or use a different app.
Always check the specific wiring guide included with your order or refer to the appropriate section below.

---

🎨 RGBW / RGBWA LED Wiring

• ▶️ Watch: RGBW LED Wiring Video

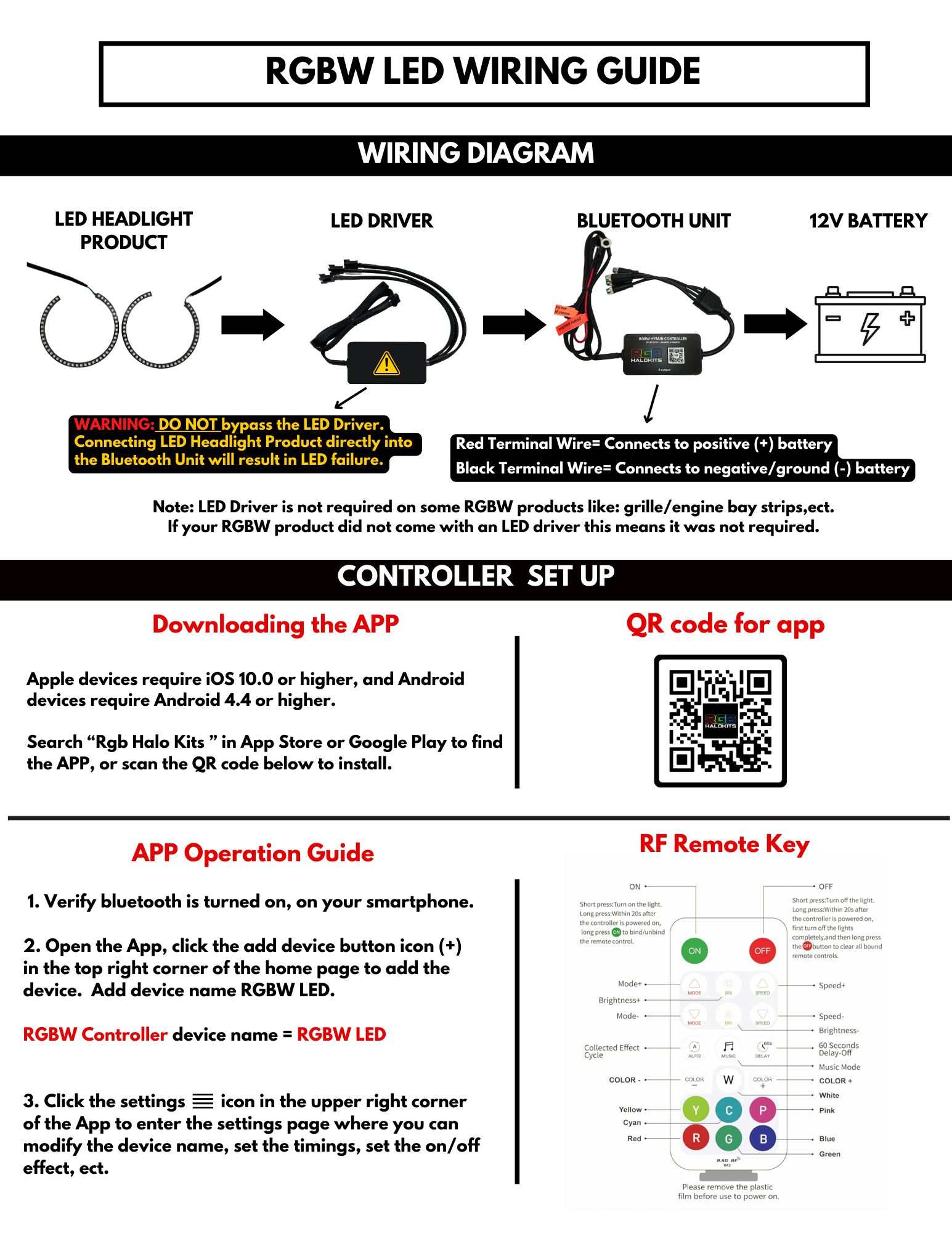

•  📘 or Refer to this diagram during install to ensure correct connections for RGBW Kits

• ▶️ Watch: RGBW+A LED Wiring Video

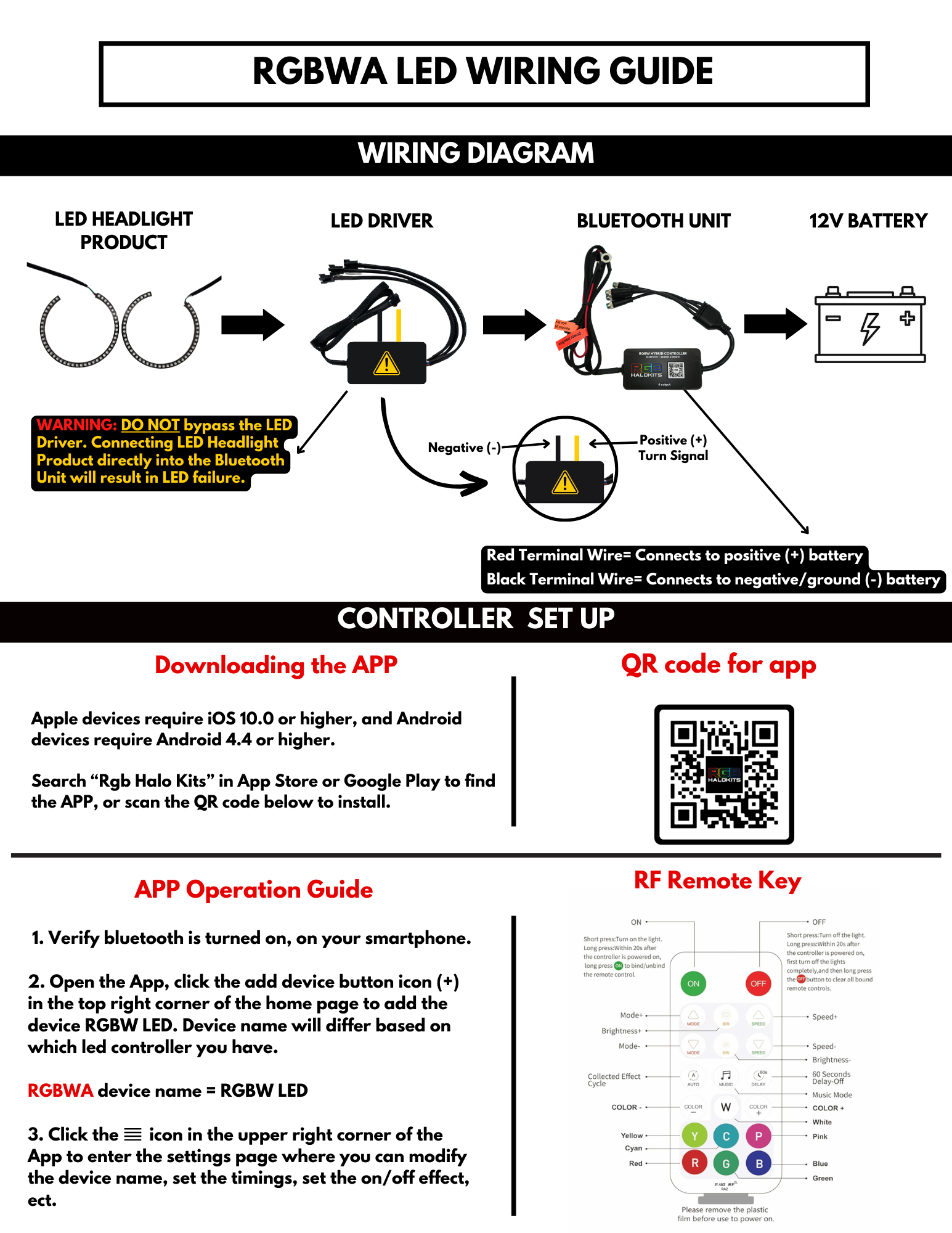

•  📘 or refer to this diagram during install to ensure correct connections for RGBWA Kits

These guides apply to any RGBW or RGBWA product, including demon eyes, halos, DRLs, and more.



❓ Common Wiring Questions

Can I wire my lights to turn on/off automatically with my DRLs or parking lights?

Yes—there are two ways to wire your controller depending on how you want the lights to behave:

---

Option 1 – Constant Power (Recommended):

• Wire directly to the battery or a constant 12V power source.

• ✅ Lights can be controlled anytime, even with the vehicle off.

• ❗ You must manually turn the lights on/off via the app.

---

Option 2 – Switched Power (DRL/Parking Light Trigger):

• Wire to a fuse that only has power when your DRLs or parking lights are on.

• ✅ Lights will automatically turn on/off with your vehicle lights.

• ❌ You can’t control the lights when your DRLs or parking lights are off.

---

Need help picking the best setup for your build?
📩 Reach out to [e-mail]
