✨ Step-by-Step Installation Guide for Your Custom 6pc Underglow Kit

This guide is for: LED Underglow Lighting Kit 3.0 - Custom Flexible

🔍 Before You Begin: Vehicle Measuring & Sizing Tips

• Measure your vehicle’s undercarriage:

  • Front bumper width

  • Side skirt lengths (both sides)

  • Rear bumper width

• Strip layout:

  • Front: 2 strips

  • Sides: 1 long strip each side

  • Rear: 2 strips

• Compare with available sizes on product page to choose the closest fit.

---

🔧 Required Tools & Materials

• Rubbing alcohol + clean cloth

• Adhesive promoter (optional but recommended)

• Zip ties or mounting clips (included for wire management)

• Small daps of epoxy (optional for added hold)

---

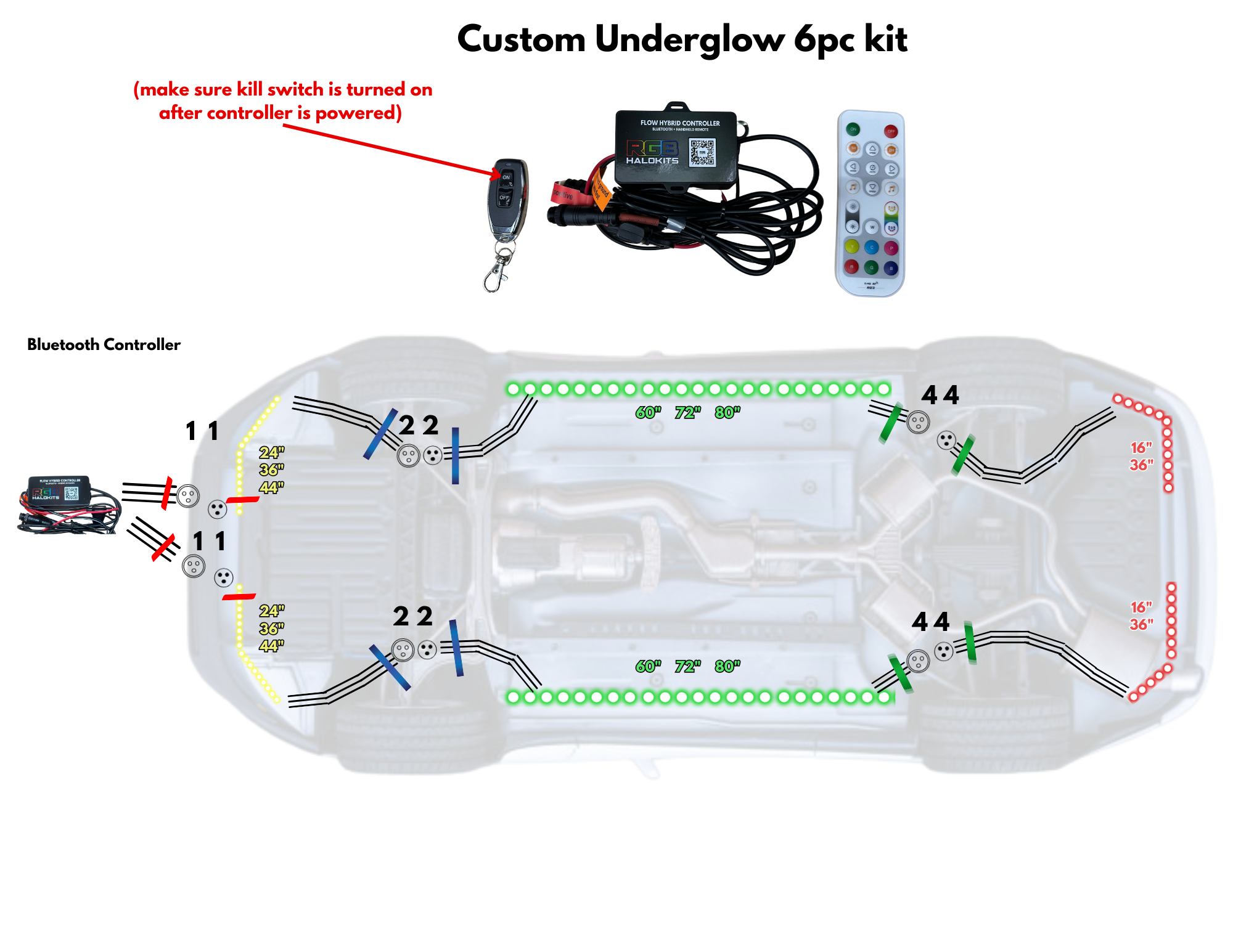

✅ Install Overview

1. Mount Bluetooth Controller in front engine bay near the battery or fuse box.

2. Strip Direction Matters: All LED strips must flow front to back (follow arrow direction printed on the strip).

3. Clean all mounting surfaces with alcohol to remove grease/dust.

4. Use adhesive promoter for surfaces like plastic or textured underbody.

5. Peel and stick strips down in this order:

   • Front (2 strips)

   • Sides (1 long strip per side)

   • Rear (2 strips)

6. Use small daps of epoxy on both ends + center of each strip for extra hold.

7. Mounting brackets are included but rarely needed for the strips themselves. Instead, use them to secure wire runs under the vehicle. If needed for the strips see video below.

8. Tuck interconnecting wires through fender liners (from front to sides, and sides to rear).

9. Connect strips to controller using labeled plug ends.

---

🚀 Controller Power & Wireless Relay Info

• This controller features a built-in wireless relay.

• After the controller is powered (wired to 12V), you must manually turn the remote ON.

• Use the remote ON/OFF only when the vehicle will be sitting for extended time.

• For regular use: control lights via the RGB Halo Kits app or RF Remote.

---

🖉 Using the App

• Download the RGB Halo Kits app from iOS or Android store.

• Connect via Bluetooth and explore:

  • Color changing modes

  • Flow patterns

  • Custom scenes




---

⚠️ Tips & Warnings

• Never cut or shorten strips

• Avoid mounting strips too close to the exhaust or moving suspension parts

• If 3M tape loses stick over time, epoxy or replacement tape can help

• Ideal to install in a clean, dry garage or out of direct sunlight



---

Questions? Contact us anytime at [e-mail] or DM us on Instagram @RGBHaloKits.

Enjoy your ultimate custom underglow setup!
