Universal Version = may need to remove factory GMC letters first or install in a alternate location on tailgate (does not fit inside factory letters)
2007-18 GMC Sierra option = installs inside factory letters and replaces red inserts
2019-2024 GMC Sierra option = installs inside factory letters and replaces red inserts
Tools Required:
- Cleaning solution and microfiber cloth
- Masking tape
- Measuring tape
- Marker or sharpie
- Plastic pry tool
- Heat gun
Installation Steps:
- Choose installation method: Decide whether you want to remove the factory emblem or install the new emblem in a separate location on the tailgate.
- removing factory emblem or inserts:
- Use a heat gun and plastic pry tool to carefully remove the factory emblem or the red letter inserts
- Clean the area thoroughly with a cleaning solution and microfiber cloth
- Allow the surface to dry completely
- If choosing a new location:
- Clean the chosen area on the tailgate
- Use masking tape and a measuring tape to mark the center point for installation
- Ensure the location is level and aligned with other vehicle features
- Prepare the new emblem:
- Align and mark a spot to drill your 5/16th hole for your led wires.
- Remove the protective backing from the adhesive
- Be careful not to touch the adhesive surface
- Install the new emblem:
- Carefully align the emblem with your chosen location and feed the led wires through the drilled hole
- Press firmly to adhere the emblem to the surface
- Hold in place for 30-60 seconds to ensure proper adhesion
- Final steps:
- Remove any masking tape used for alignment
- Clean any fingerprints or smudges from the emblem surface
- mount your led driver in a secure location

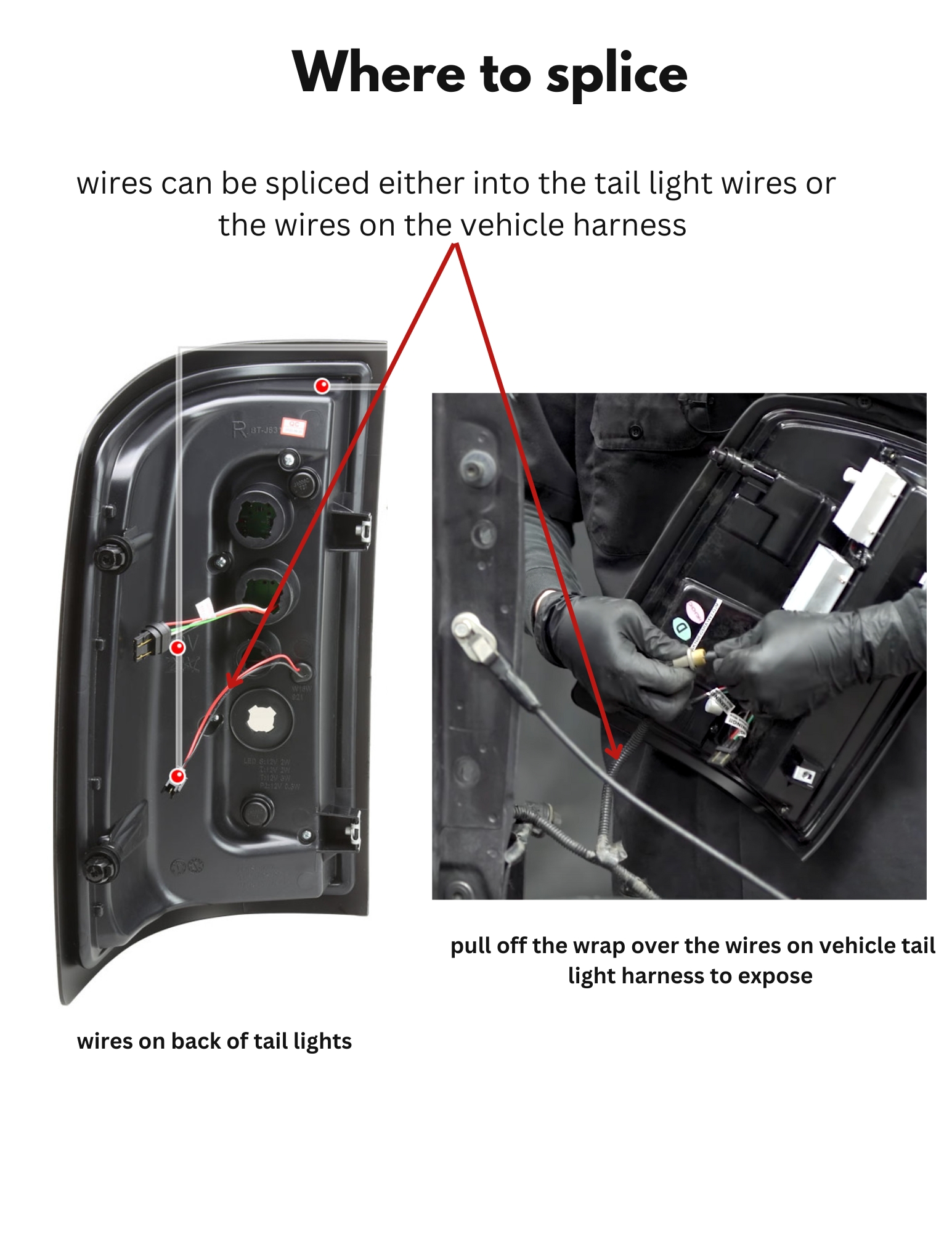

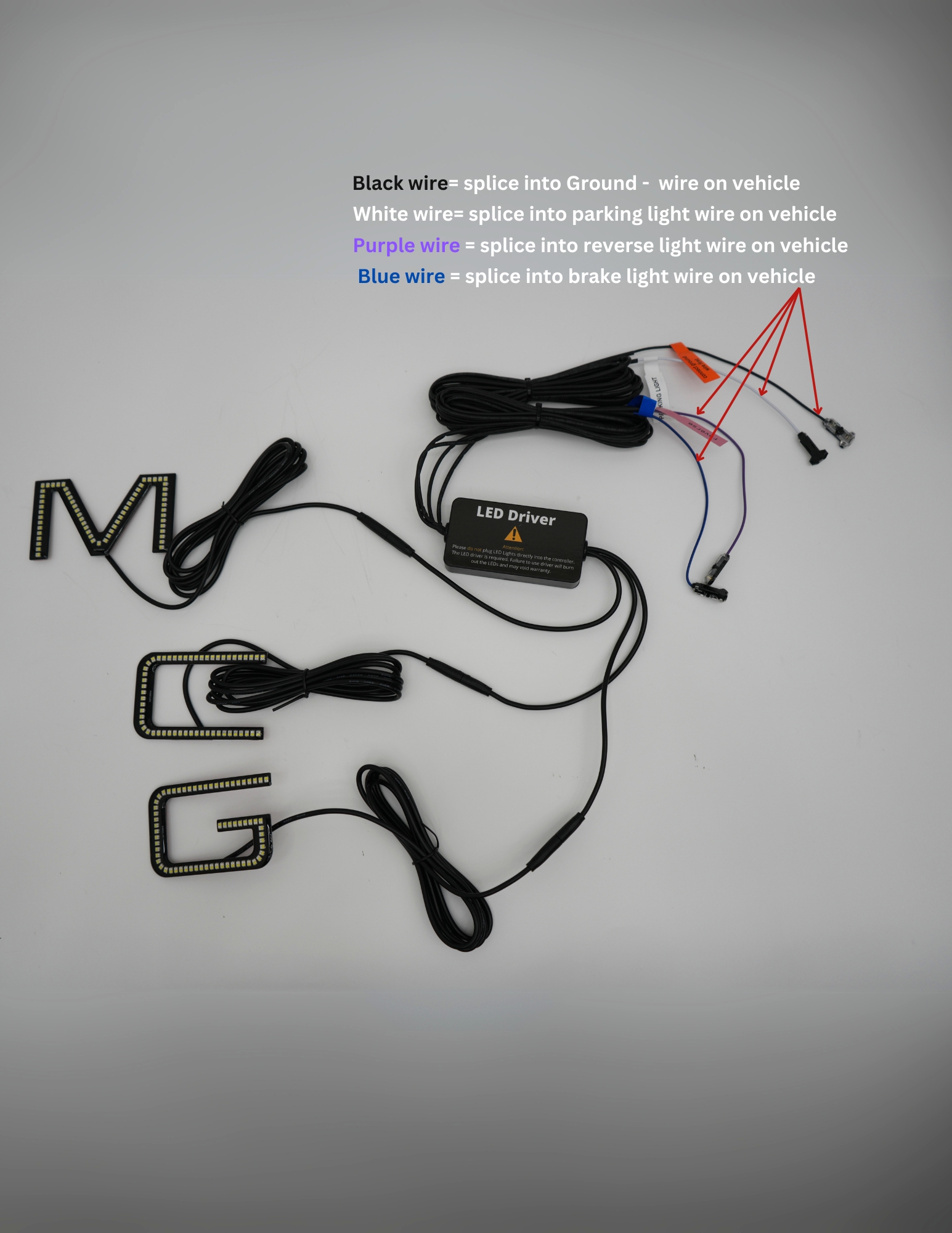

- Wire your LED emblem into your vehicle tail lights according to the included guide
Note: If you're unsure about the installation process, we recommend seeking assistance from a professional installer or your local mechanic
