RGBW Fiber Optic Interior Ambient Lighting Kit Install Guide

Search in sidebar query

Product link:

RGBW Fiber Optic Interior Ambient Lighting Kit



Installation

Wiring guide



Step 1: Power your wire harness using any 12V positive and ground connection or use a cigarette lighter power adapter (red to red and black to black).

Step 2: Install lights in your desired area by securely pushing them into any gap or split in your interior. You may need a squeegee or credit card to help fit the lights in tight areas. It is important to note that lights only bend one way, so be sure to test and keep this in mind when installing. Run wires as neatly as possible for the best results. Wires can be tucked into cracks and crevices as needed.

Step 3: Each strip is cuttable as needed for the best fitment. It can be cut using common household scissors. The strips can be cut after or before any LED. If you cut on an LED and experience flickering, cut a little more off, and the lights should function as normal. Do not cut off the wire end. Please cut the end away from the wire.

Step 4: Power each strip directly to the wiring harness using the included extension wire and hide wires as best you can.

Step 5: Open the Magic Light app to control your lights and enjoy!

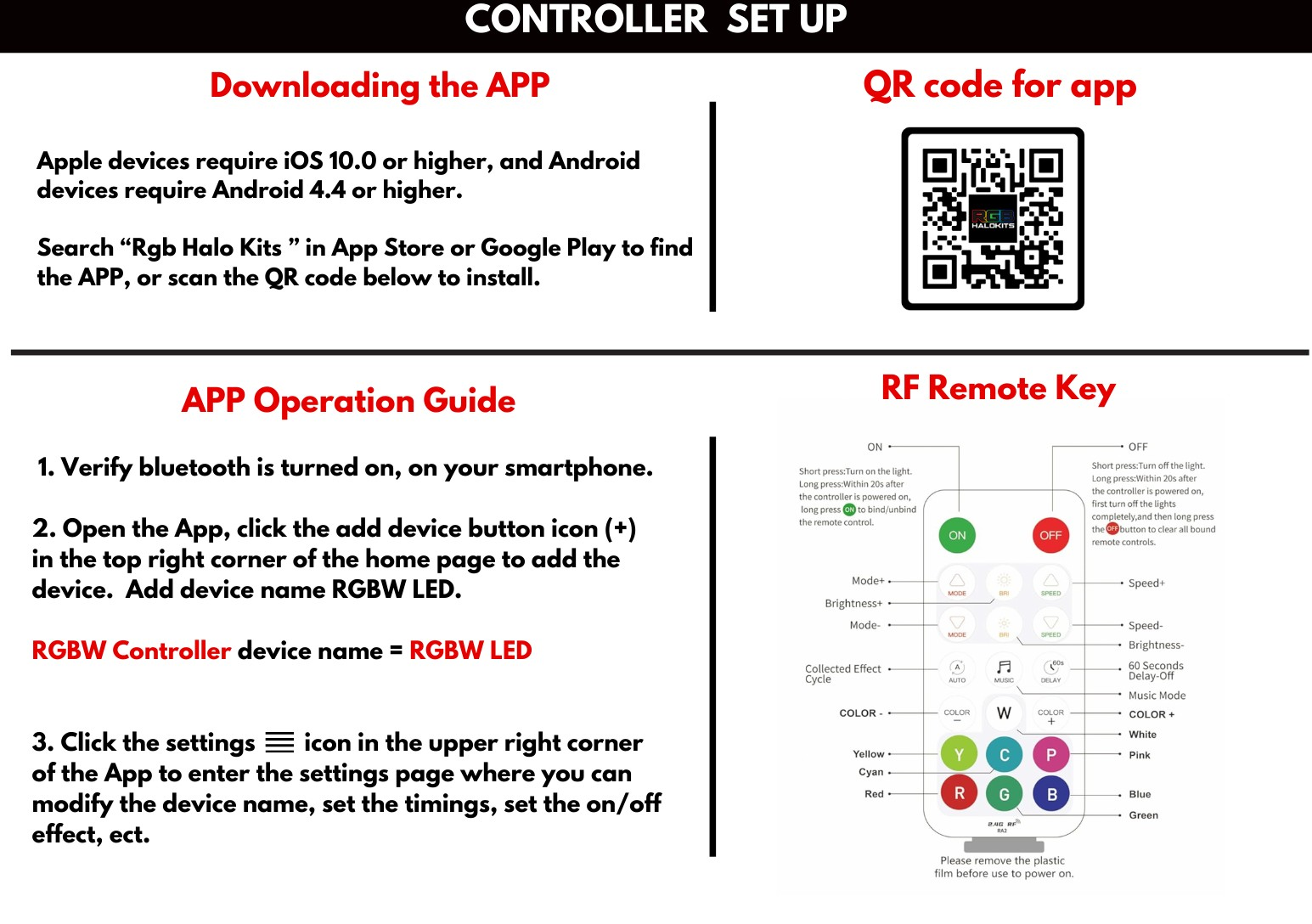

RGBW Bluetooth Setup

App name: Magic Light

Magic Light playstore.pngMagic Light appstore.png

Screen Shot 2023-08-03 at 2.48.36 PM.png
