Flow Series Interior Fiber Optic Kit Install Guide

Each fiber optic strip measures 43 inches in length
Features integrated LEDs along the strip itself
Includes waterproof snap-in connectors for easy installation and secure connections

Each strip has 76-inch leads coming off each side.

This guide is for: Flow Series Interior Dash - Part #K5

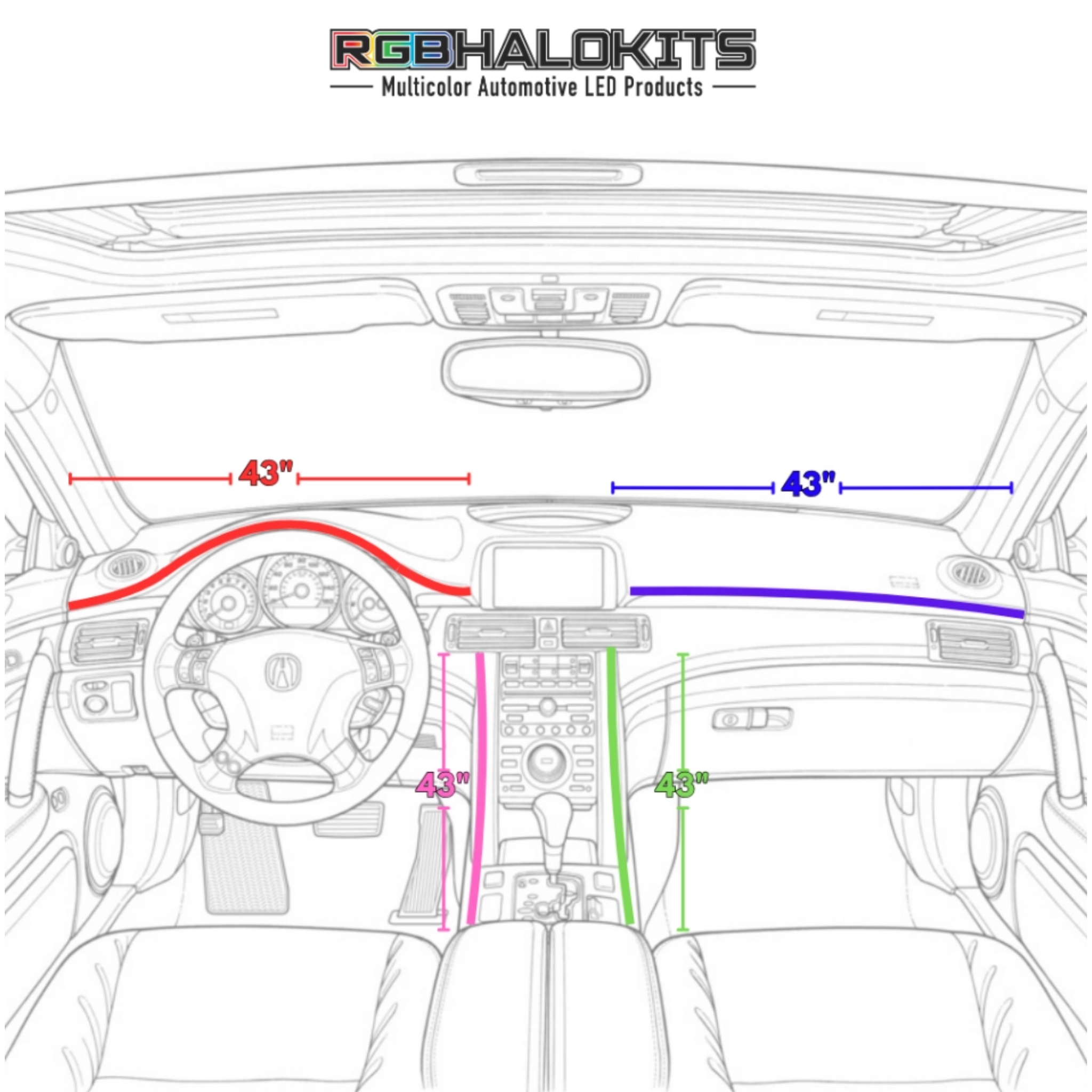

This kit includes 43 inch fiber optic light strips with Flow Series LEDs for dash lines, center console, and door trims.
Includes Bluetooth controller + RF handheld remote with dynamic chasing effects and RGB color customization.

Plan layout before installation: Dry-fit fiber optics to confirm length and placement across your dash and doors.
Mount the Bluetooth controller in the engine bay. Ensure it's in a secure and dry location. Run the strip wires through the firewall into the vehicle interior, using an existing grommet or safely drilled entry point.
Insert the fiber optic blade into the panel gap:
- Start with the dash and center console
- Gently press the fiber into trim gaps using a plastic tool

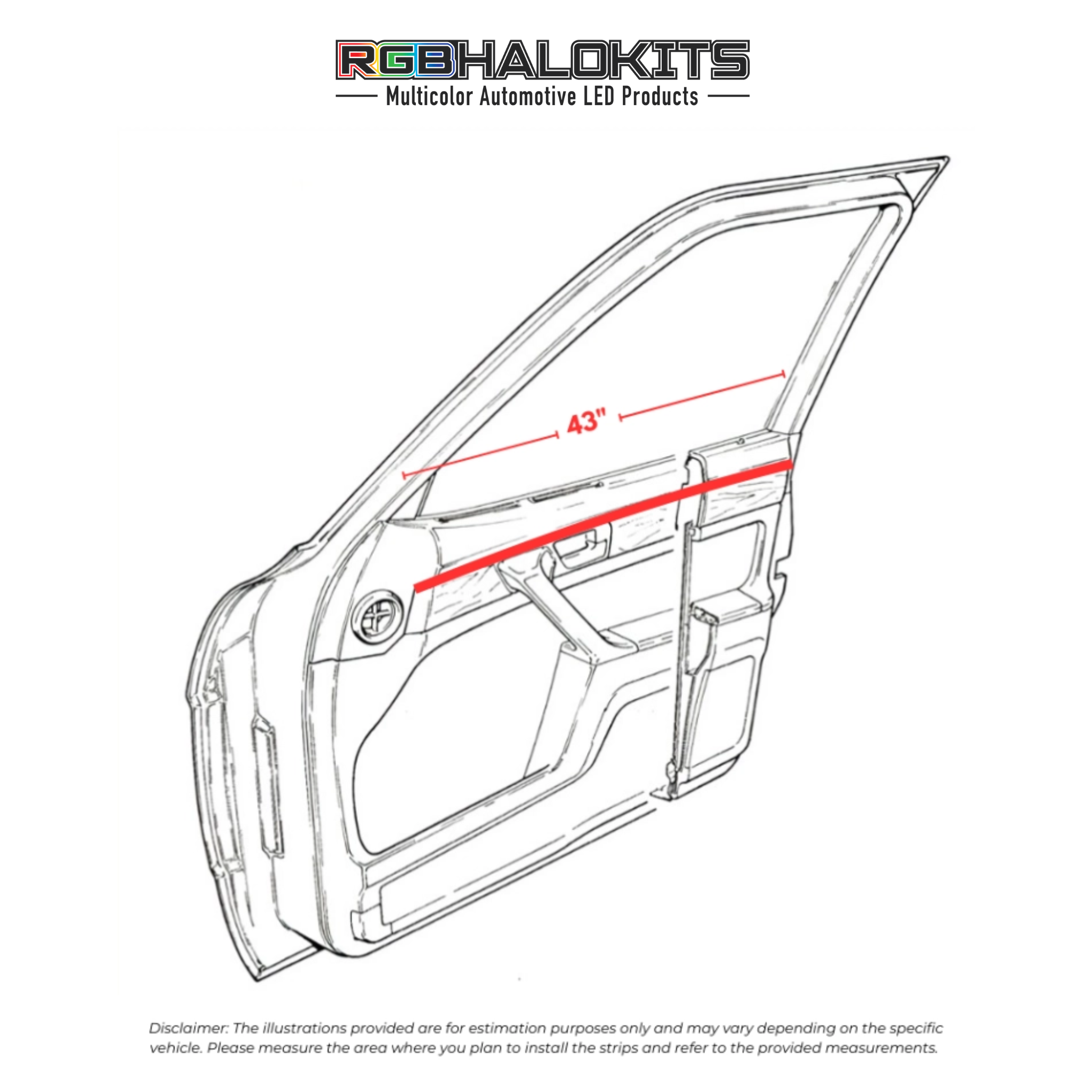

- For best results: remove door panels to feed fiber along the trim lines, then reinstall
Connect the fiber optic cable ends to the Flow Series LED source
Power the controller via 12V accessory power or fuse tap
Test all strips before finalizing. Ensure all fibers glow evenly and fit securely.

Download the RGB Halo Kits app on iOS or Android
Open the app and connect to your kit via Bluetooth
Choose between:
- Color-shifting effects
- Flow/chasing patterns
- Scene and music sync modes

Do not bend fiber optic cables too sharply – this can cause light breaks
These fibers are designed to press-fit securely into interior panel crevices—no adhesive or cleaning is required


Need help or have questions? Reach us at info@rgbhalokits.com or message us on Instagram @RGBHaloKits.

Glow up your cabin with custom Flow Series interior lighting!
