Multicolor DRL Boards General Install Guide


This install guide will give you some insight on install process of DRL Boards. The Process for installing DRL Boards is Generally the same for most headlights. Once headlights are opened up, installation is typically a breeze! Professional Install is recommended.


Step 1: Remove headlights from the vehicle. (some vehicles require you to remove the bumper to access headlights. For this step, we recommend using a handy youtube video to help with your vehicle bumper.)

Step 2. Open headlights.

Step 3. Identity and remove the OEM White DRL Circuit Boards inside the headlights

Step 4. Install the RGBW or Flow Series Multicolor DRL instead of the white circuit boards. Here is a video example of a DRL install

Step 5: Run wires out the back of headlights and Test your components thoroughly

Step 6: Reseal Headlights

Step 7: Reinstall headlights back on the vehicle and Wire Multicolor DRL circuit boards according to our wiring guide

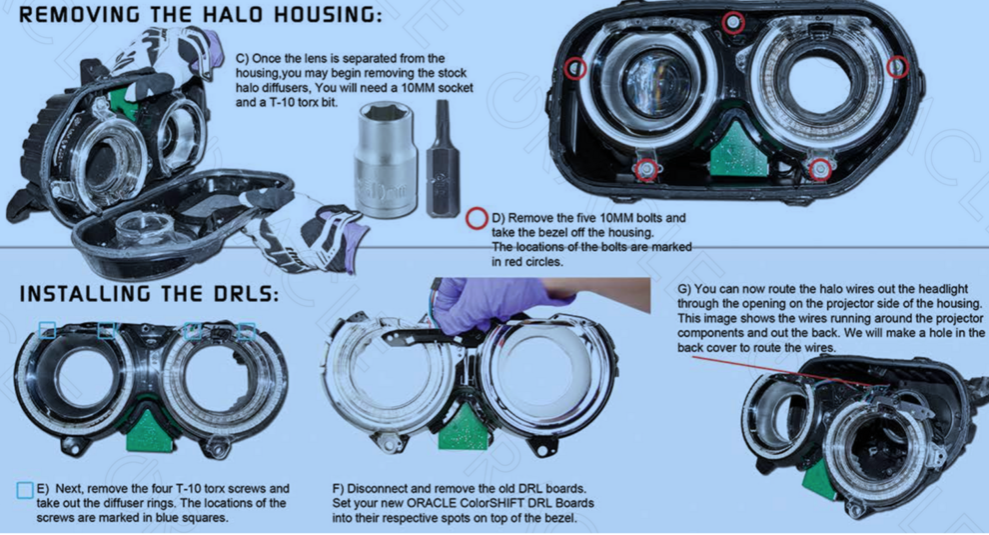

DRL Boards Install Example:



*DRL multicolor boards may be: circuit boards, LED Strips, Ribbons, or Individual LEDs, depending on the specified headlight design

*DRL Boards may be of different sizes, shapes, designs, and brightness depending on the specified headlight
